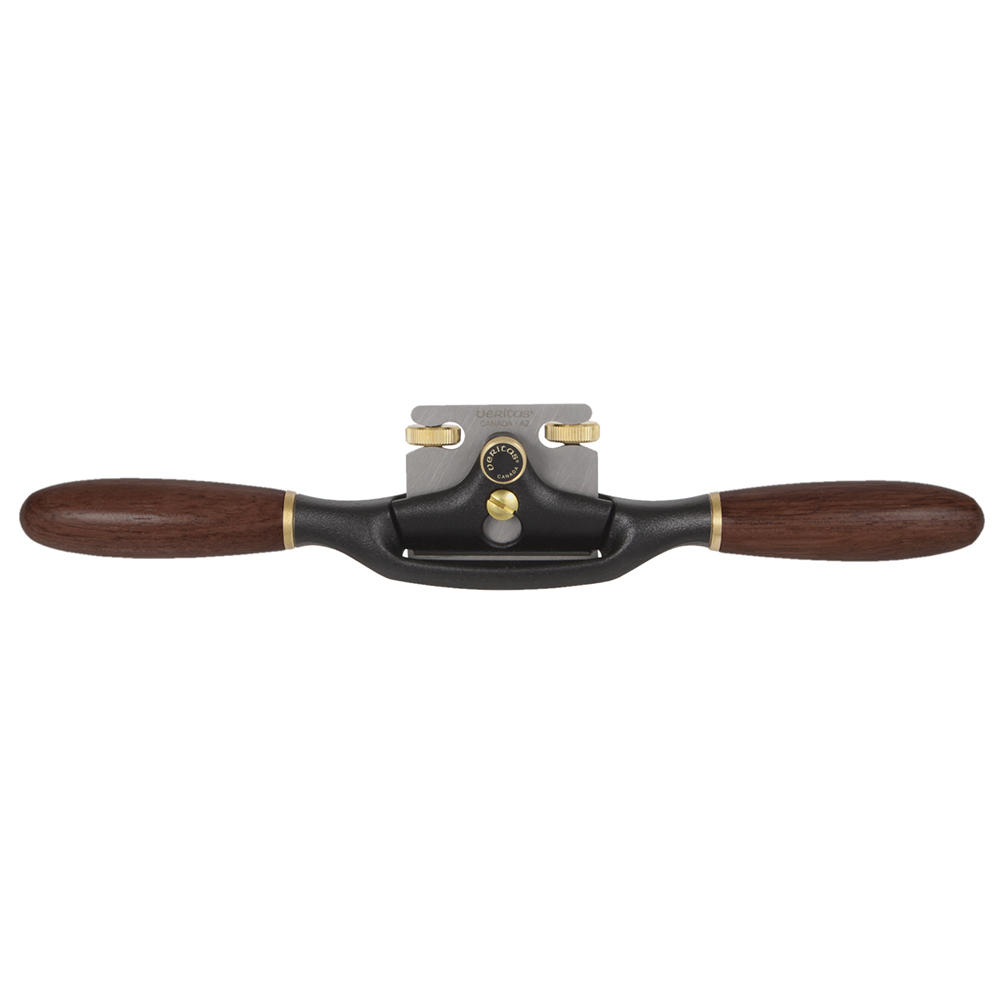

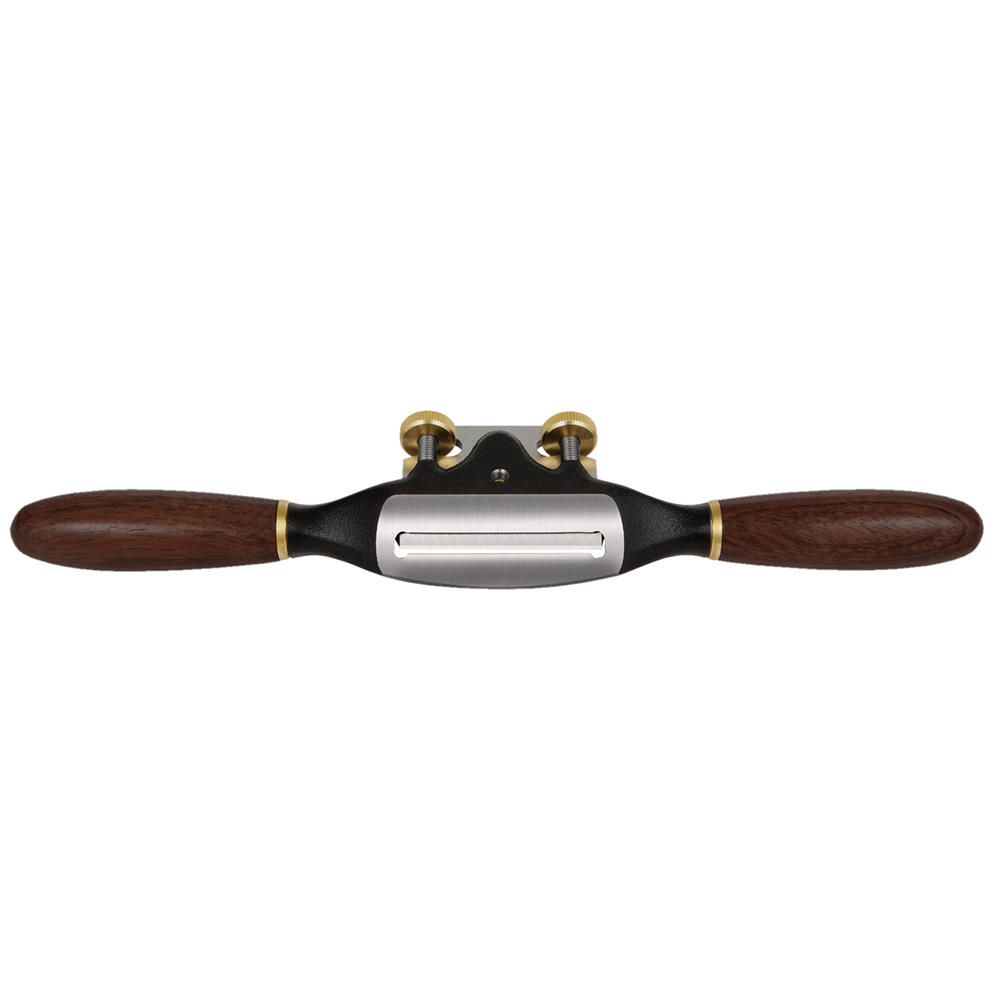

Veritas Spokeshave, Rounded Sole, PM-V11 Blade

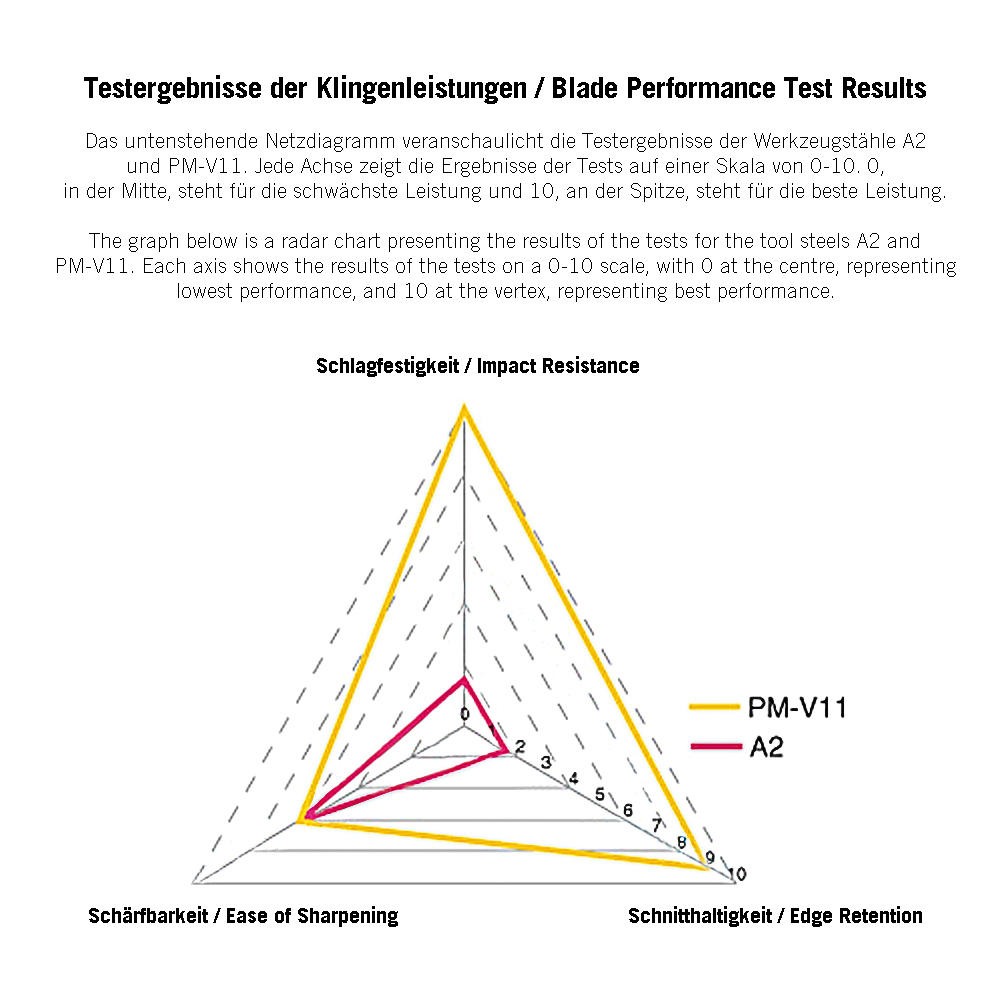

PM-V11 Steel br>PM-V11 steel is made from a new, powder metallurgy steel alloy. With its ultra-fine and homogeneous material structure and extreme hardness (HRC 61-63), this steel has double the edge-retention capacity of A2 steel. PM-V11 blades allow a razor-sharp edge and are highly durable even at a bevel angle of less than 20°. All blades come with a 2° microbevel and can be sharpened on conventional waterstones.
For fine shavings when working on flat and long curved surfaces such as bows, boats, slats, planks and edges. Because they are guided by hand and are sensitive to the wood structure, spokeshaves must have hefty bodies and thick cutting blades (3.2 mm). The blade can be adjusted with knurled screws, the mouth opening with supplied shims. The radius of the round version is 44 mm, while the concave version has an inside radius of 33 mm.
Veritas Planes
The corporate philosophy of Canadian tool manufacturer Veritas aims to develop new adjustment mechanisms and enhance historic plane design. With bodies made of stress-relieved spheroidal cast iron, these tools are highly resistant to cracking and distortion. Their soles are perfectly plane and trued at right angles to the sides. Their thick blades of high-strength A2 steel are hardened to 60-62 HRC and additionally subjected to a special low-temperature process to achieve a finer grain. Veritas planes are optionally available with PM-V11 blades. (The Custom series models are equipped with PM-V11 blades as standard). Two setscrews on the sides constrain the blade laterally, keeping it in place regardless of the type of stress applied. Unless otherwise stated, the blade is angled at 45°. With their material combination of finely-ground or black-coated cast iron bodies, polished brass setscrews and beautiful torrefied maple handles, these planes are also pleasing to the eye.
Veritas
Veritas Tools Inc., based in Ottawa, Canada, is a world leader in woodworking tool design innovation and is the manufacturing arm of Lee Valley Tools Ltd., a leading North American retailer of fine tools. Lee Valley Manufacturing Ltd. was founded in 1985 and later became Veritas Tools Inc. Today, with 250 products and more than 100 patents in lines that include woodworking planes, sharpening equipment, marking and measuring tools, router tables, drilling accessories and more, they have become a leader in product development to meet the needs of discerning woodworkers.
- Blade width 54 mm
- Blade thickness 3.2 mm
- Blade material PM-V11™
- Overall length 270 mm
- Weight 330 g
- Plane body Spheroidal Cast Iron
- Sole shape rounded
- Type Spokeshaves
- Design / cutting angle Bevel down / cutting angle 40°-45°
- Intended use For curved contours
| Article no. | 703988 |
| Brand | Veritas |
Ready to ship, delivery time 3-4 workdays within Germany
Accessories
DICTUM Wax for Planes
The DICTUM wax for planes is not only used to prevent metal planes from rusting with long-lasting effect, but also reduces the friction between the plane sole and the workpiece. The application of stains, oils or lacquers is not...
€9.50
(Content: €38.00 / 1 litre)
incl. VAT plus shipping costs
Article No. 810149
Passend dazu

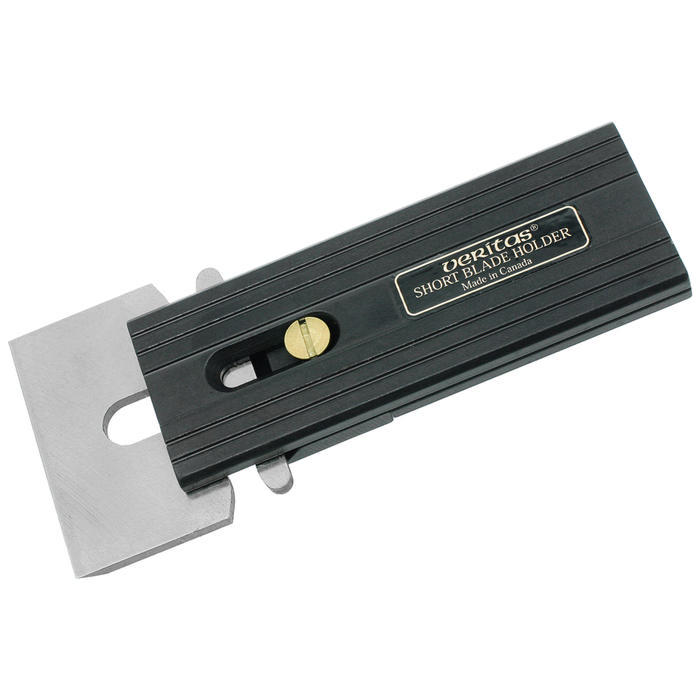

Veritas Sharpening Device, for Small Plane Blades
