DICTUM Chuck DSF80
Simple, safe and versatile clamping options for your turning work

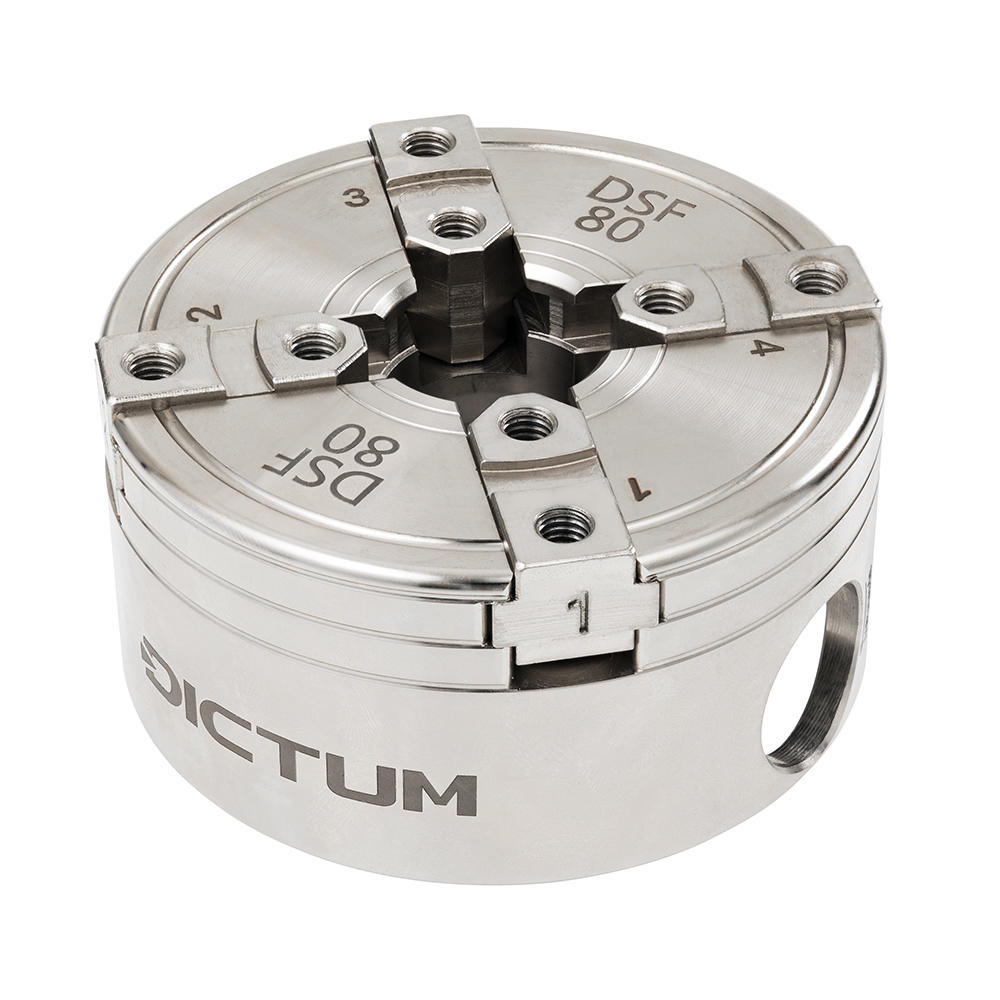

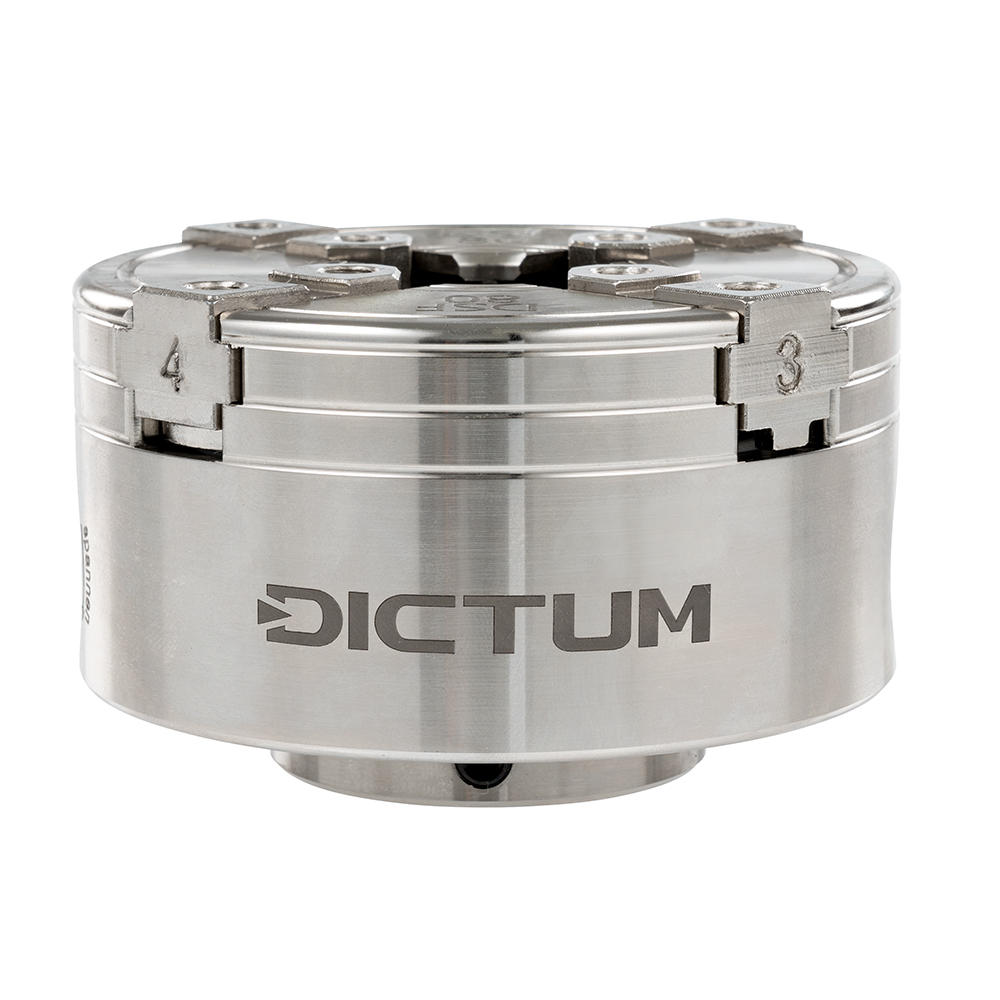

Compact and lightweight self-centring four-jaw universal chuck. Particularly suitable for small to medium-sized woodturning objects. The chuck key with a T-handle allows for the chuck to be easily clamped and spread with one hand, leaving the other hand free for the workpiece. The base jaws are secured against excessive unscrewing. Clamping the jaws in a clockwise direction provides additional safety. The direct thread M33 x 3.5 DIN 800 is integrated into the chuck body, making the chuck lighter and shorter while providing higher concentric accuracy. The chuck and the matching DICTUM jaws are nickel-plated, offering excellent protection against moisture and corrosion. Stainless steel screws also prevent the screws from seizing due to rust.Benefits:
- T-handle geared chuck key
- Chuck body and jaws nickel-plated for maximum corrosion resistance

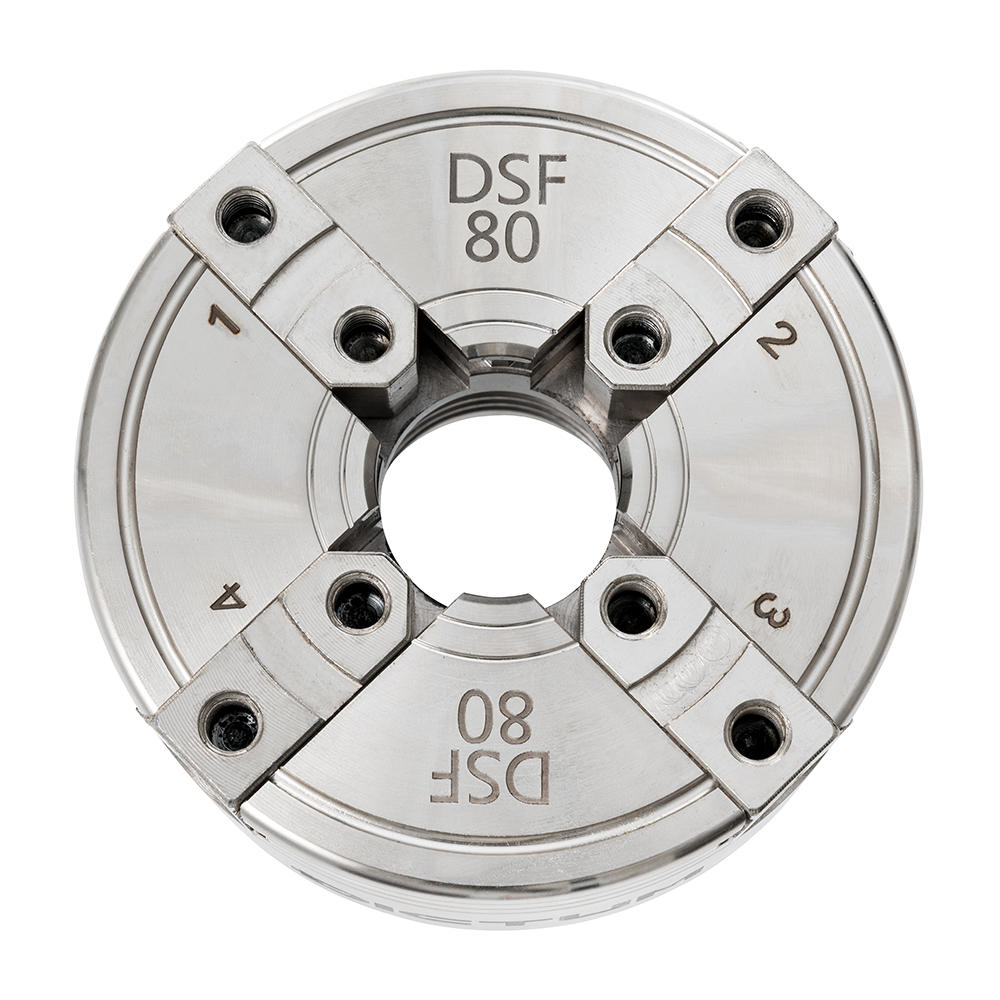

- Base jaws are secured against unscrewing

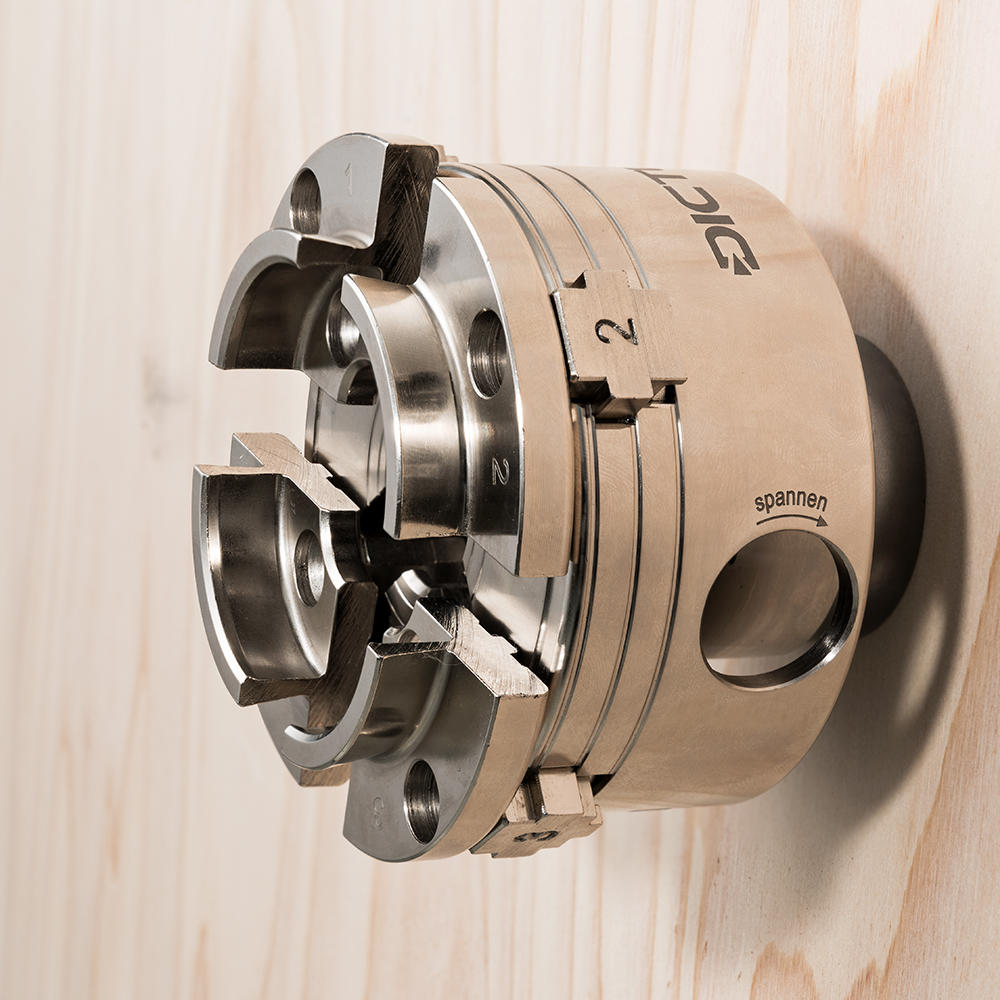

- Closure of the jaws in the usual clockwise direction

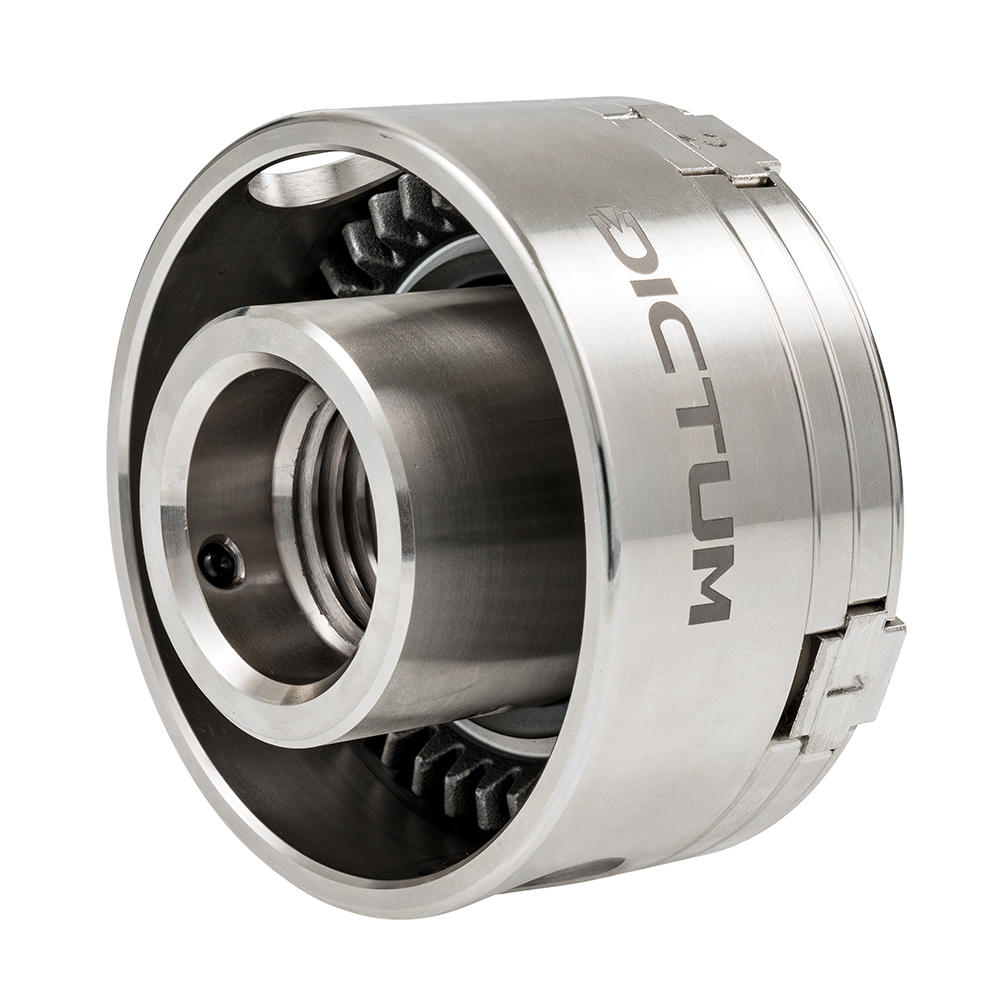

- Direct thread for high concentricity

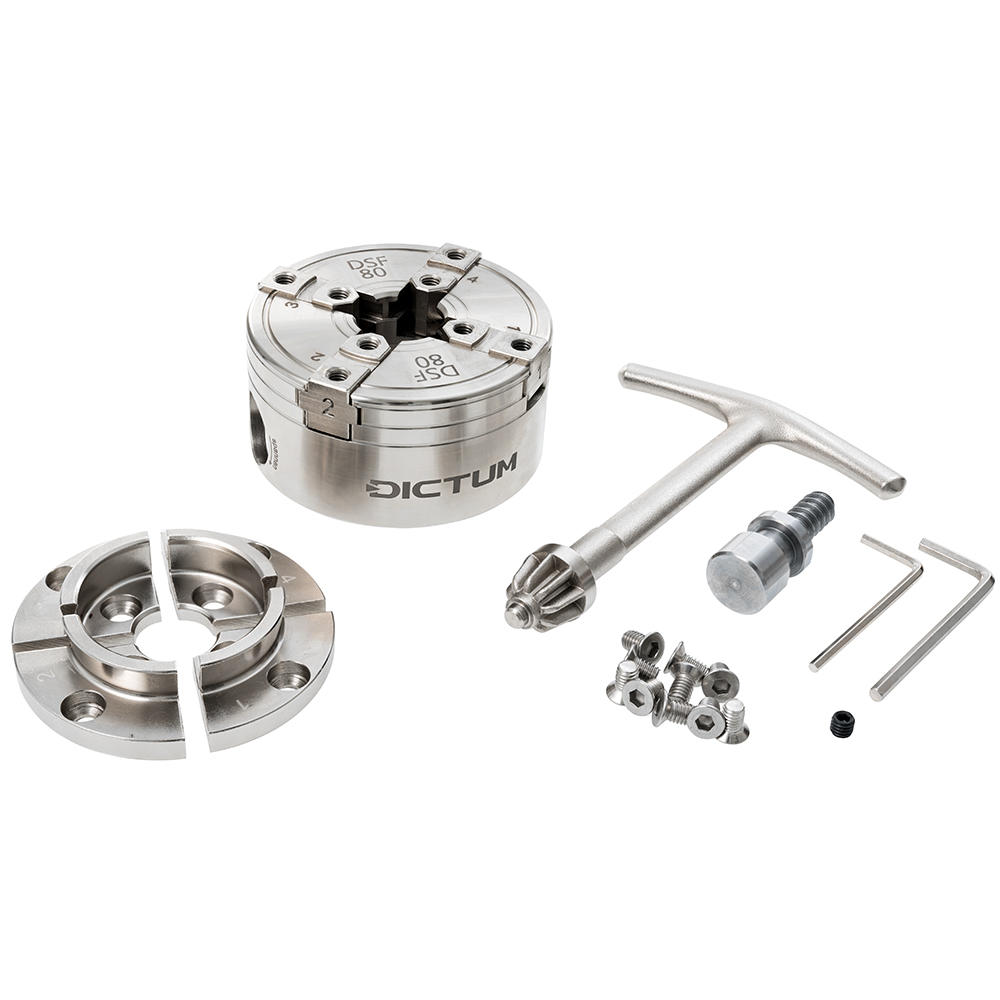

Scope of delivery
- Chuck Ø 80 mm, with direct thread M33 x 3.5 DIN 800

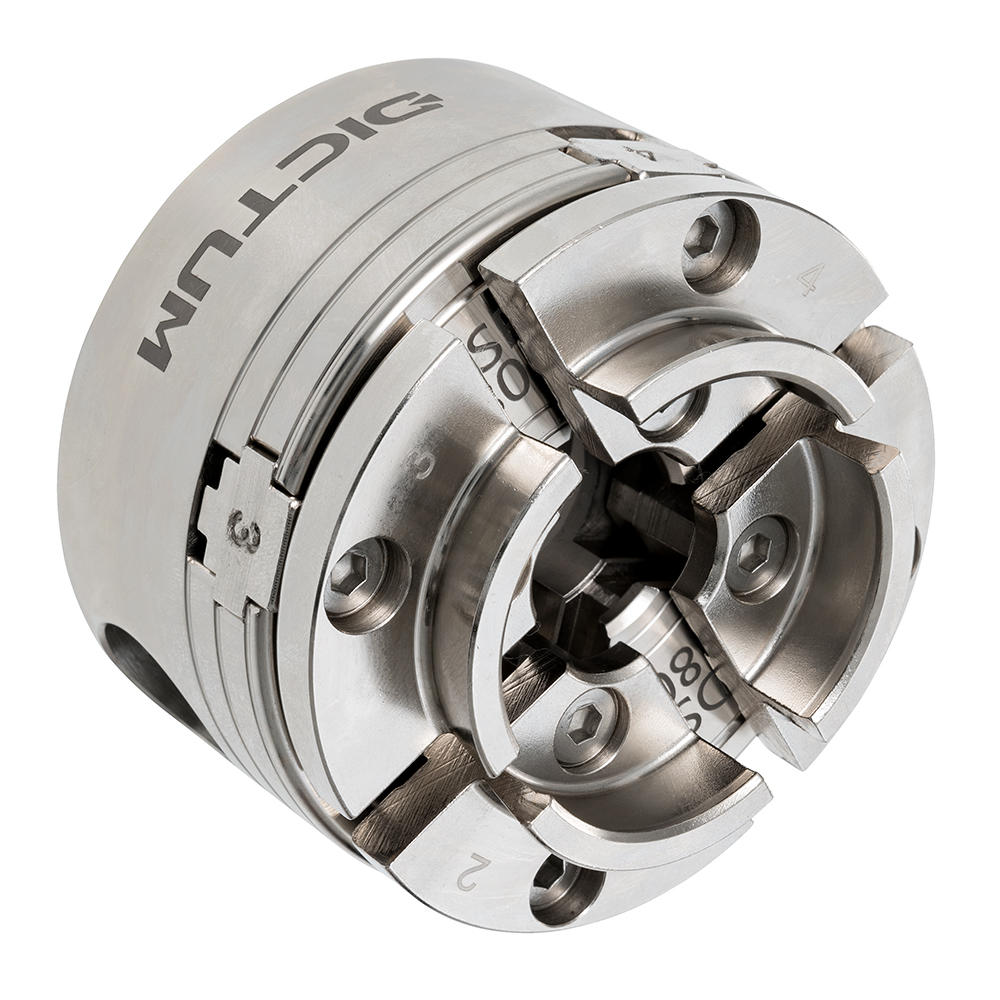

- Dovetail jaws Ø 50 mm
- T-handle geared chuck key
- Stainless steel screws (10 pieces)
- Woodworm screw
- Hex key
- Includes German instruction manual
Supplied in cardboard packaging
DICTUM
DICTUM is dedicated to creating products which have a long service life and are free from substances that are harmful to the environment or health.
For more than 170 years, our corporate philosophy has embodied:
- The highest functional aesthetics
- A commitment to ergonomics
- The best materials
- Long-standing business relationships with manufacturers and suppliers
- Long-lasting products thanks to comprehensive services such as our
Sharpening service
Handle mounting service
Spare parts availability
- Ø 80 mm
- Model M33 x 3.5 DIN 800
- External chucking 42-60 mm
- Internal chucking 52-72 mm
| Article no. | 725096 |
| Brand | DICTUM |
